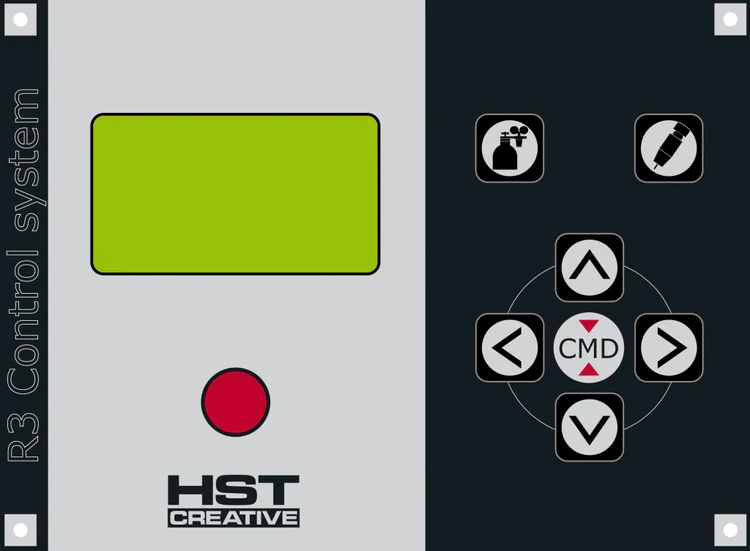

R3 CONTROL SYSTEM
Control System for Rotary Welding Positioners
Simple, intuitive and precise control system designed for HST CREATIVE rotary welding positioners.
01
Easy Operation
Simple controlling adapted for easy understanding by the operator.
02
Clear LED Display
Large LED display shows all necessary values of key features.
03
Intuitive Menu
Internal menu is divided into graphic blocks for intuitive orientation.
04
Program Memory
Programs and settings can be saved directly into the control system memory.
TECHNOLOGICAL FUNCTIONS
Precise Control for Rotary Welding
R3 divides value settings for rotation, welding source control, welding arm and forming gases into clear functional blocks.
Rotation
- Digitally controlled rotation speed
- Central rotary knob for faster standby response
- Adjustable rotation direction
- Automatic rotation from 0° to 730°
Welding Process
- Digitally controlled welding delay
- 2-step and 4-step control modes
- Adjustable end welding angle
- Manual and automatic control options
Welding Arm
- Program controlled welding arm
- Adjustable arm movement before welding
- Adjustable arm movement after welding
- Prepared for automated welding cycles
Forming Gas
- Program controlled forming gas control
- Pre-gas timing
- Post-gas timing
- Adjustable gas process settings
PROGRAMMABLE INTERFACE
Save Your Own Programs and Settings
The R3 control system allows operators to save their own programs and settings into memory using a programmable interface inside the system.
